Winder MinMax

www.store.karl-wetzel.com



Article no. designation

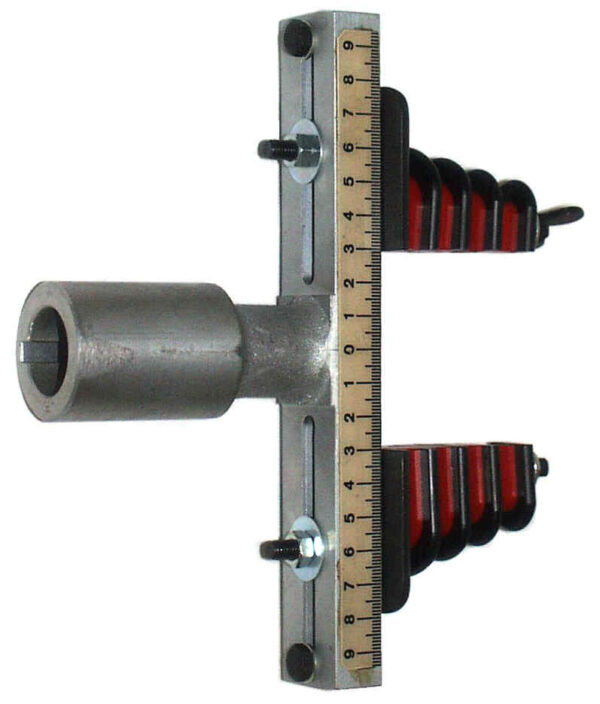

2.029.50 Wrapping device “Mini Max” complete

consists:

Article no. designation
2.029.00 Clamping beam “Mini Max”

and the associated winding templates:

Article no. designation size number of steps stages step width step width
2.029.10 wrapping template 00 m 4 unequal 10 12, 16, 22, 30
2.029.12 wrapping template 0 m 4 unequal 10 21, 28, 35, 43
2.029.14 wrapping template 01 m 4 equally 10 34
2.029.16 wrapping template 1 m 4 equally 10 45
2.029.18 wrapping template 02 m 4 unequal 10 26, 39, 52, 65
2.029.20 wrapping template 2 m 6 unequal 10 35, 45, 55, 65, 75, 85



SKU: 2.029 Category:

Description



Article no. designation
2.029.50 Winding device “Mini Max” complete

consists:

Article no. designation
2.029.00 Clamping beam “Mini Max”

and the associated winding templates:

Article no. designation size number of steps stages step width step width
2.029.10 wrapping template 00 m 4 unequal 10 12, 16, 22, 30
2.029.12 wrapping template 0 m 4 unequal 10 21, 28, 35, 43
2.029.14 wrapping template 01 m 4 equally 10 34
2.029.16 wrapping template 1 m 4 equally 10 45
2.029.18 wrapping template 02 m 4 unequal 10 26, 39, 52, 65
2.029.20 wrapping template 2 m 6 unequal 10 35, 45, 55, 65, 75, 85
