layer machine TW
www.store.karl-wetzel.com
Technical specifications:
| changing table: | 120cm x 60cm x 85cm |
| winding speeds: | 45 / 55 / 70 / 80 / 110 / 140 rpm. |
| Output shaft diameter: | 35mm |
| Connection value: | 400 volts; 3 phases; 50Hz |
| Machine dimension: | 135cm x 60cm x 105cm |
| Weight: | 83kg |
| Article no.: | 1.012.36 |
Description

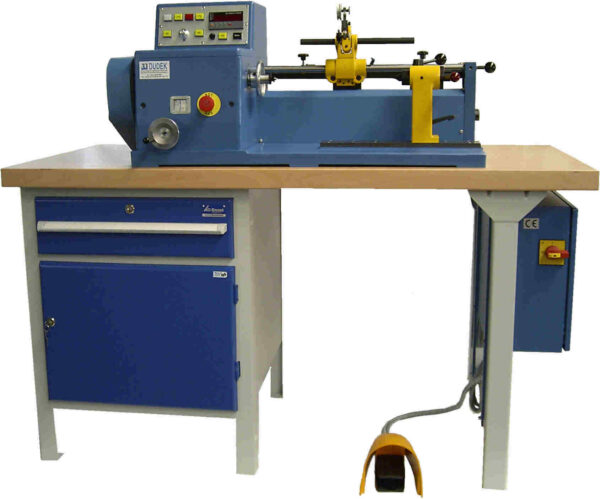

The coil winding machine TW 15 is a precision layer winding machine that is suitable for winding:
- transformer coils
- disc coils
- choke coils
- ignition coils
- relay coils
- field coils
- form coils
- etc.
The speed range can be infinitely preset using a potentiometer. The spindle speed can be infinitely adjusted with the foot switch within the previously set speed range. The feed is steplessly adjustable with a hand wheel.
Standard equipment:
- Machine table 150 cm x 70 cm
- 1 wire guide
- Tailstock with tip
Special accessories:
| Article no. | description |
| 1.012.36.01 | additional wire guide |
| 1.012.36.05 | wire break monitoring |
| 1.012.36.09 | Winding mandrel M6 |
| 1.012.36.10 | Winding mandrel M8 |
| 1.012.36.12 | Winding mandrel M10 |
| 1.012.36.14 | Winding mandrel M12 |
| 1.012.36.16 | Winding mandrel M14 |
| 1.012.36.17 | Winding mandrel M16 |
| 1.012.36.18 | Winding mandrel M18 |
| 1.012.36.19 | Winding mandrel M20 |
